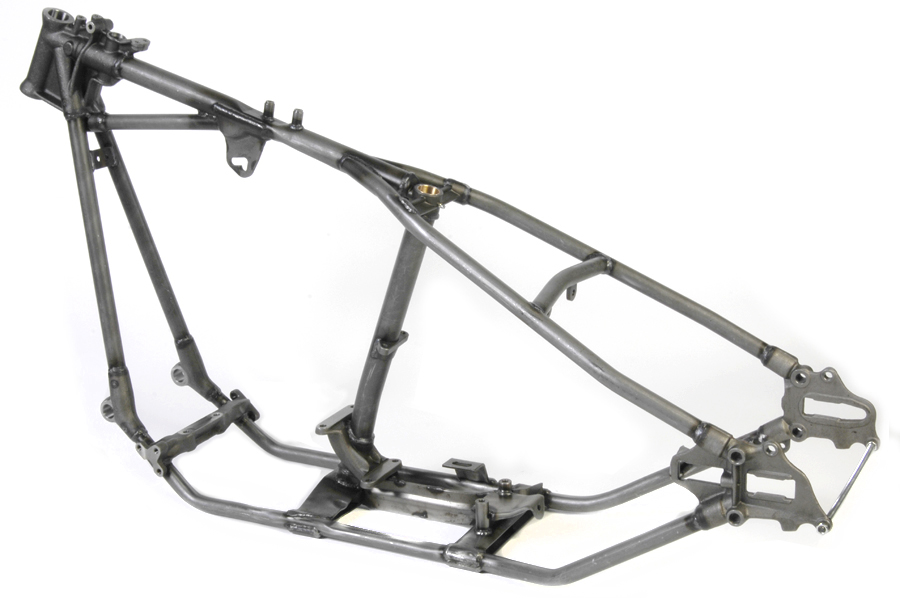

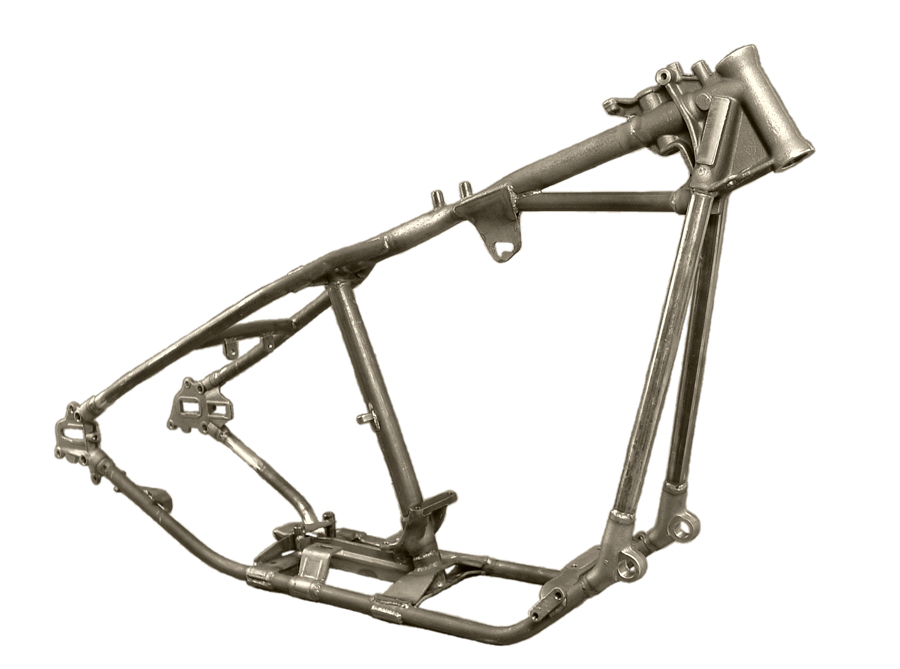

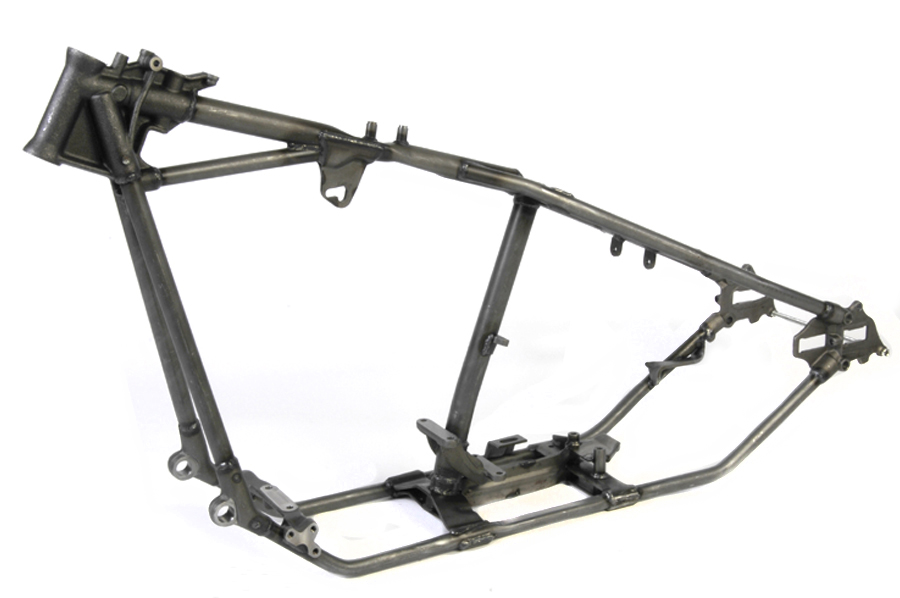

Straight Leg Rigid Frame

You will also need another part

• Required When using a chain drive with a 230 tire, the use of #17-0859, a 1" offset plate and a #19-0105 sprocket is required.
• Required When using a belt or chain drive with a 200 tire, the use of #17-0860, a 3/4" offset plate and a #19-0104 sprocket is required.
• Required When using a Shovelhead, Evolution, or Twin Cam engine, it is required to use a #42-0617 tin inner primary.
• When using with a TC-88 engine order #51-0625 rear frame mount adapter plate
• Use #31-0475 Front Engine Mount Spacer to accept 1936-1947 Knucklehead or Flathead engines in 1948-up frames.
• When using the #42-0617 tin inner primary, the use of #19-0570 is needed if using a #17-0859 transmission plate 1" offset and a #19-0105 sprocket.
• When using the #42-0617 tin inner primary, the use of #19-0569 is needed if using a #17-0860 transmission plate 3/4" offset and a #19-0104 sprocket.
• Suggested to use with #44-1942 axle.
• Accepts 140-200 rear tires.
