Replica "HM" Knucklehead 28° Rake Frame

Before you order — V-Twin tech note

• Requires purchase of clamp on coil bracket kit #49-0099.
• In some instances it may be necessary to ream or file holes slightly in order to assemble parts onto the frame.
• *NOTE: Includes a Replica Vertical Tool Box Mount Bracket.

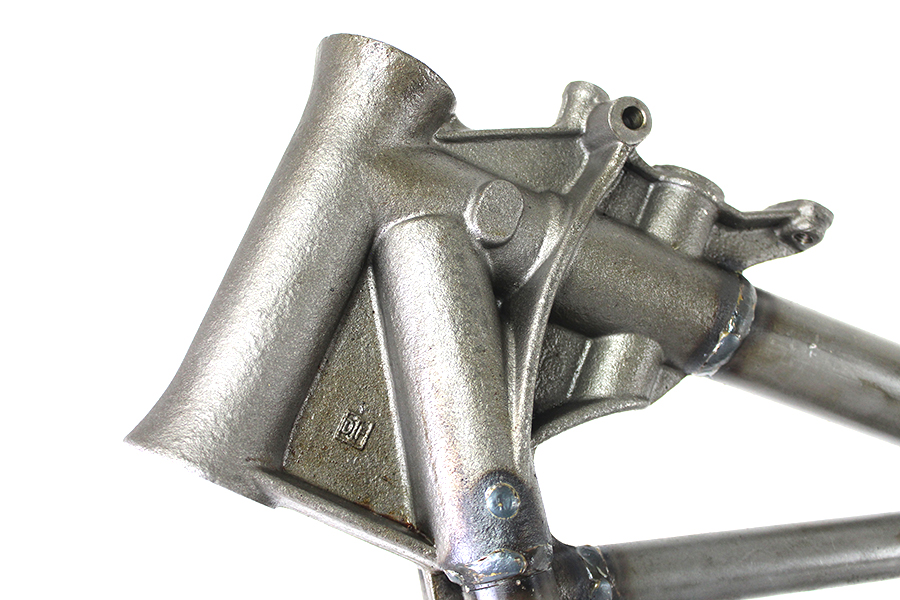

• *NOTE: Replica "HM" is our updated version with forging hallmarks on many of the components.

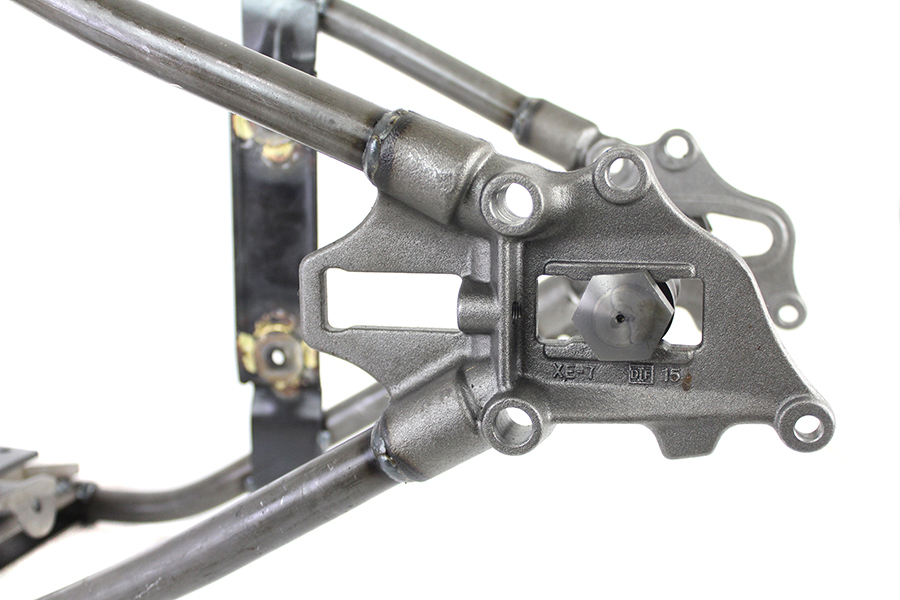

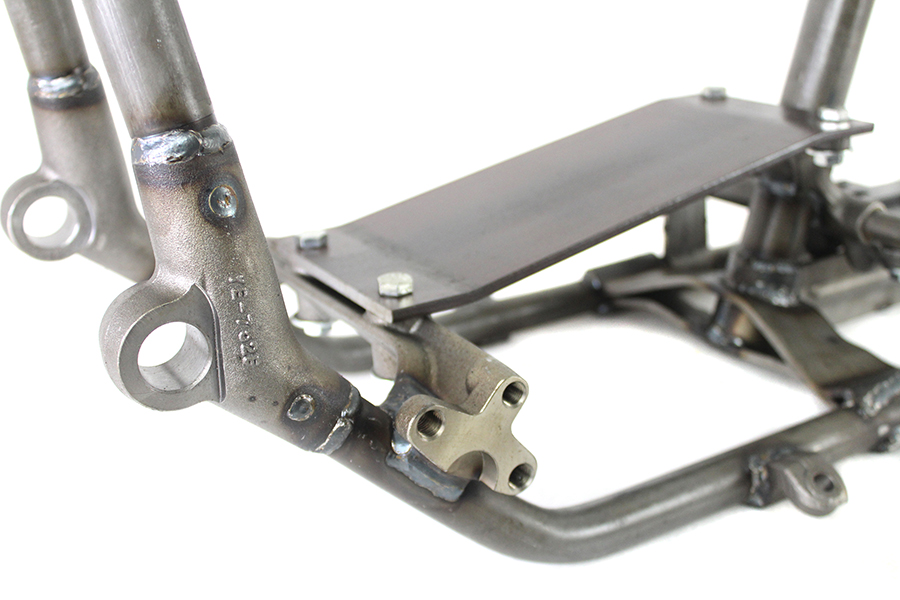

• *NOTE: Features the following forged parts with HallMark numbers and marks: seat yoke, front motor mount, side car loops, rear axle plates and transmission front/rear mounts.
• *NOTE: Mount Seat "T" to frame before installing gas tanks. Place #6320 washer between the tank and frame tab before mounting.
• *NOTE: Seat post and cross shaft bushings may require further reaming for proper fit.
• *NOTE: There are no serial numbers stamped on the replica frame. V-Twin supplys a Bill of Sale only, referencing the part number.
