PART 49-2900
18" Inline Spring Fork Assembly
by V-Twin
$1,767.26
V-Twin list $1,472.72 · our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
You will also need another part
- Required *NOTE: Must order shock, ride control, axle assembly, top tree and bearing kit, as required.
- How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits, to the axle position. This is the effective length, as it is the legnth
- from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame
- height. 1" stem utilized tapered bearings for ease of installation.
- Suggested to use with #24-0150 Stem Cone Nut Black.
- Suggested to use with #24-0656 Fork Installation Kit Ball Type.
Classic Pre-1984
🏍️ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 3 models.
Description

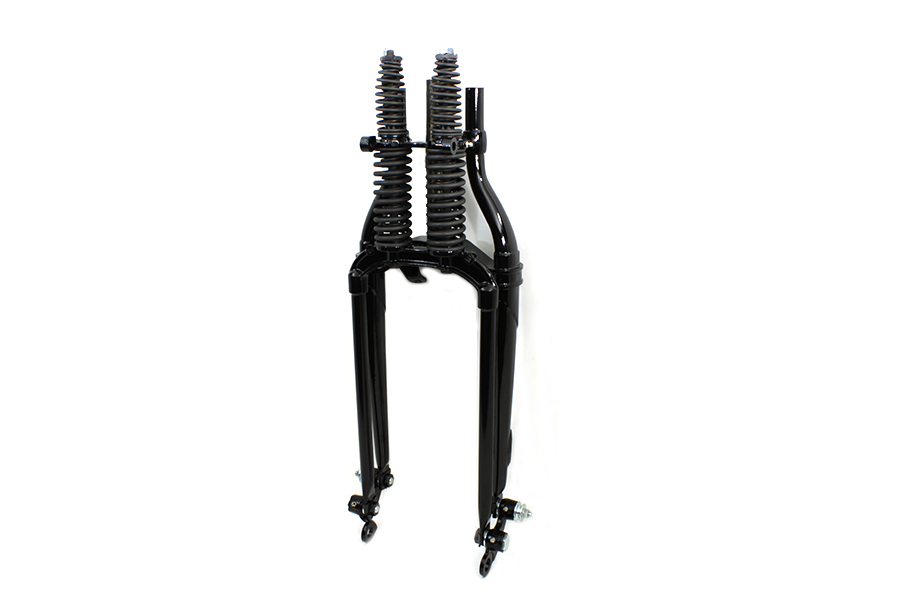

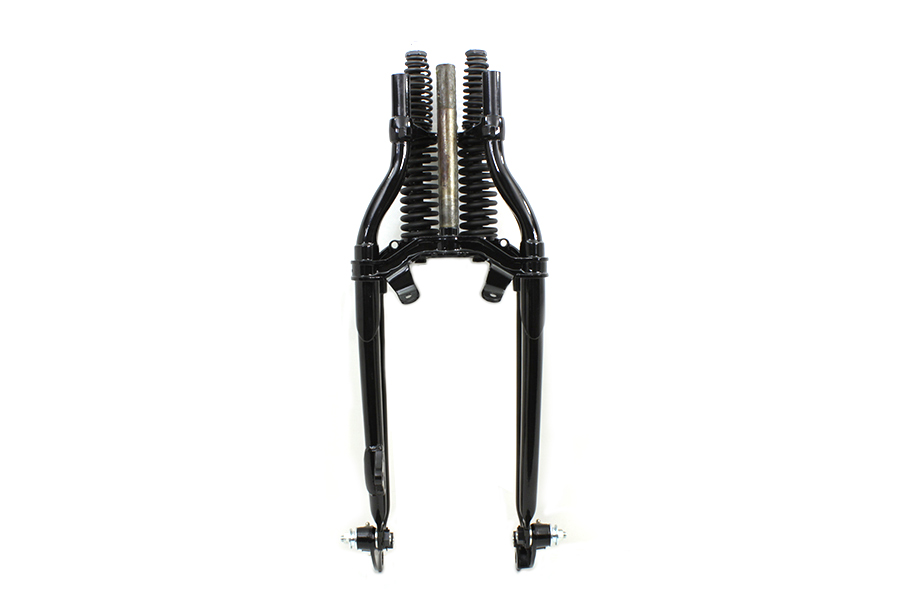

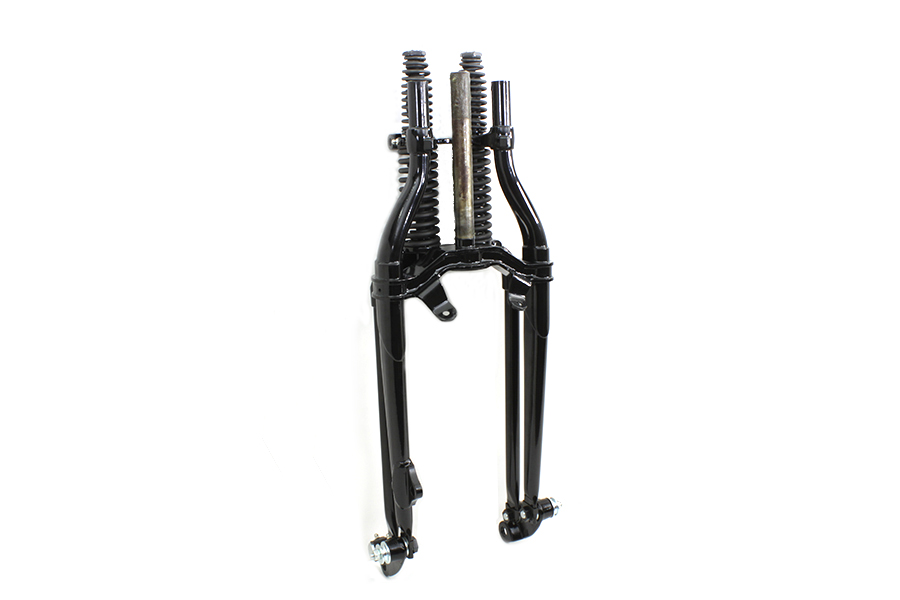

Kit includes front and rear black powder coated legs, parkerized outer springs, black rockers, and zinc plated rocker studs. It comes completely assembled with a 1" stem with 1" x 24 thread.
Specifications
- V-Twin number
- 49-2900
- Manufacturer
- V-Twin
- Size
- STD
- Sold as
- 1 - KIT
- Origin
- Imported
- Measurements
- Length: 18"
- Style
- without Shocks
- 2026 catalogue pages
- 795
Fits these motorcycles (3)
FL1941-1945
EL1936-1940
UL1937-1945
