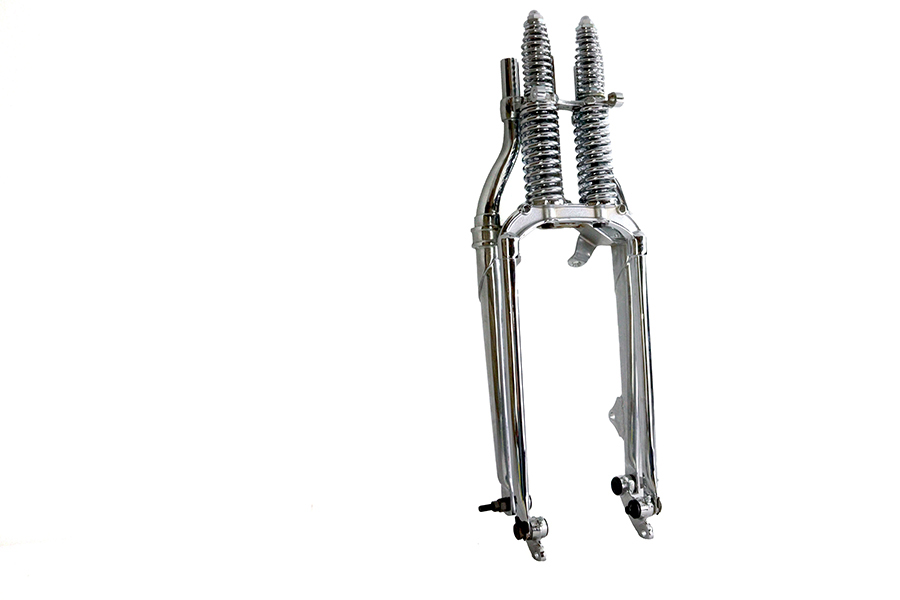

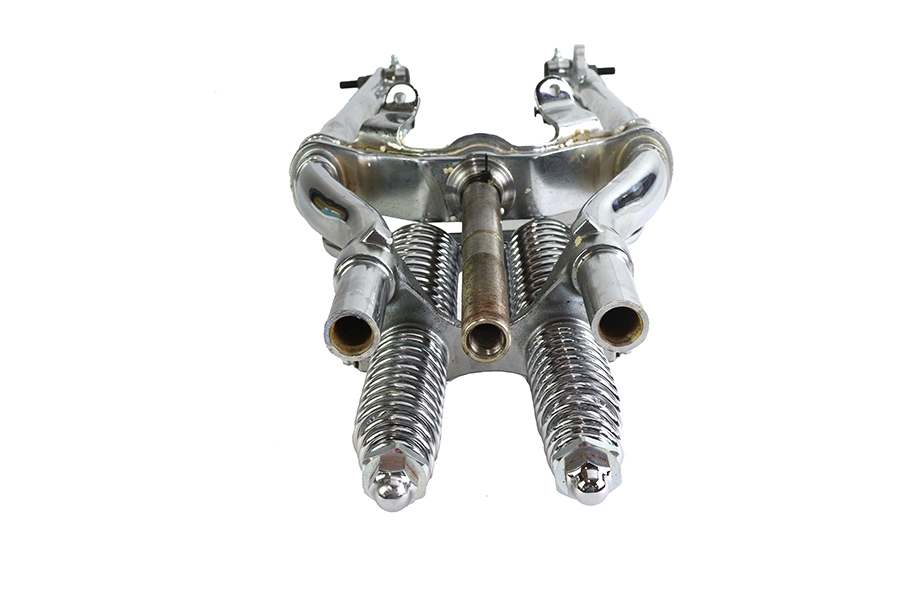

Factory Sample 18" Spring Fork Assembly Chrome

Before you order — V-Twin tech note

• *NOTE: We measure from the top of the rear leg (tube), to the front axle center line.
• Unit is unpolished at the rear fork stem cross plate and at the front spring fork rod forging.
• *NOTE: 45" Spring Fork rockers are mounted to the inside of the fork and utilize a 3/8" axle. 45" Servi-Cars, 1947-1957, use Big Twin rockers on the outside of the fork.
• How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits, to the axle position. This is the effective length, as it is the legnth
• from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame
• height. This Spring Fork assembly accepts a 3/4" axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1" stem utilized tapered bearings for
• ease of installation.
