PART 49-2465

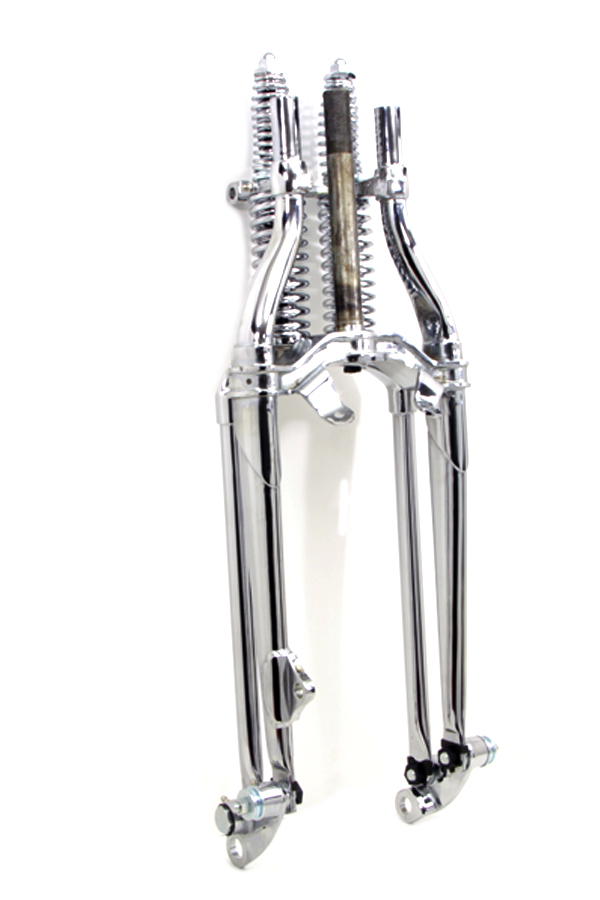

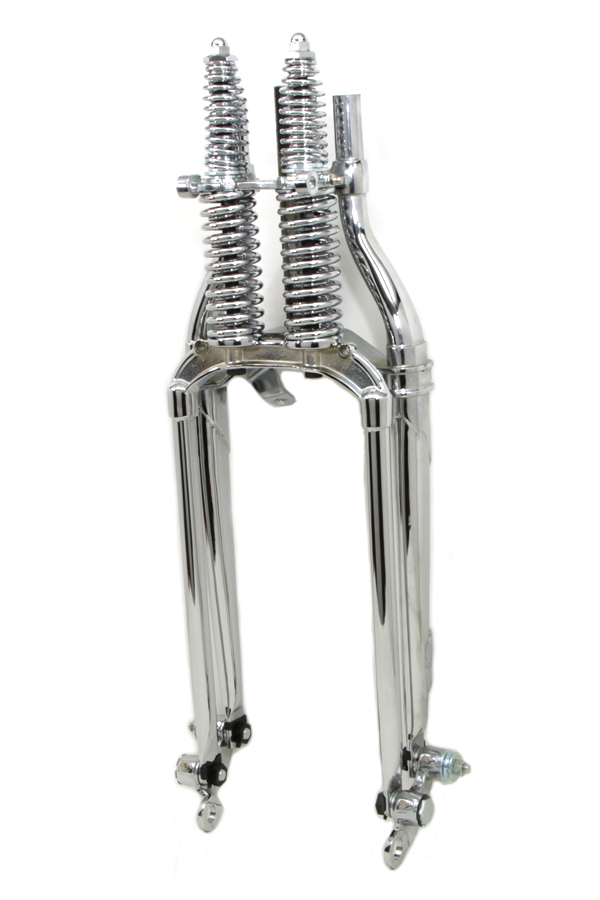

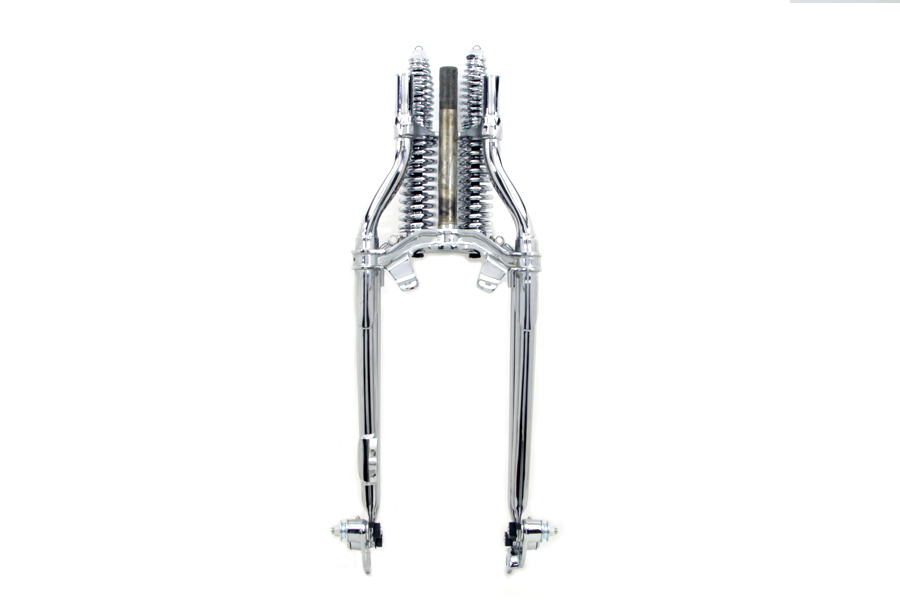

Factory Sample 18" Inline Spring Fork Assembly Chrome
by V-Twin
$1,020.84
V-Twin list $850.70 · our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
You will also need another part
- Required *NOTE: Must order shock, ride control, axle assembly, top tree and bearing kit, as required.
- How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits, to the axle position. This is the effective length, as it is the legnth
- from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame
- height. This Spring Fork assembly accepts a 3/4" axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1" stem utilized tapered bearings for
- ease of installation.
Classic Pre-1984
🏍️ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 3 models.
Description
Kit includes front and rear chrome legs, chrome outer springs, chrome rockers and zinc plated rocker studs. It comes completely assembled with a 1" stem with 1" x 24 thread.
Specifications
- V-Twin number
- 49-2465
- Manufacturer
- V-Twin
- Sold as
- 1 - KIT
- Origin
- Imported
- Measurements
- Length: 18"
- Style
- without Shocks
Fits these motorcycles (3)
FL1941-1945
EL1936-1940
UL1937-1945
