PART 49-2417
22" Inline Spring Fork Chrome +4"
by V-Twin
$1,760.02
V-Twin list $1,466.68 · our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
You will also need another part

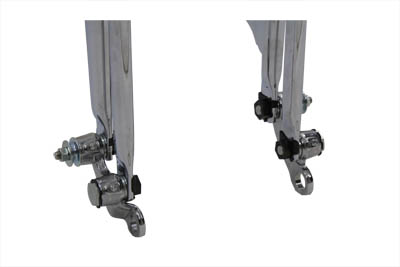

- Unit is unpolished at the rear fork stem cross plate and at the front spring fork rod forging.
- Required *NOTE: Must order shock, ride control, axle assembly, top tree and bearing kit, as required.
- How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits, to the axle position. This is the effective length, as it is the legnth
- from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame
- height. This Spring Fork assembly accepts a 3/4" axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1" stem utilized tapered bearings for
- ease of installation.
Classic Pre-1984
🏍️ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 3 models.
Description

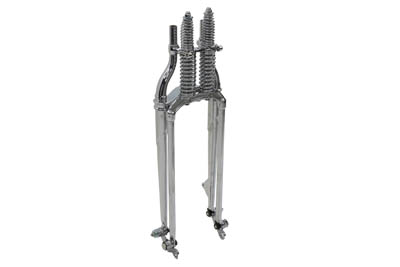

Unit features chrome front legs, chrome outer springs, chrome rockers and chrome rear leg.
Specifications
- V-Twin number
- 49-2417
- Manufacturer
- V-Twin
- Size
- 32 inch
- Sold as
- 1 - EA
- Origin
- Imported
- Measurements
- Neck Stem: 1" x 24T
- Style
- without Shocks
- 2026 catalogue pages
- 795
Goes with this part
V-Twin lists these alongside 49-2417 — replacements, the parts commonly fitted at the same time, and supersessions. Check the fitment on each before ordering.
49-0235Rebuild Kit49-0573Rod Acorn Nut Chrome
7706-2 - Cadmium Spring Rod Bushinglisted by V-Twin, not in our catalogue
Fits these motorcycles (3)
FL1941-1945
EL1936-1945
UL1937-1945
