PART 49-2400

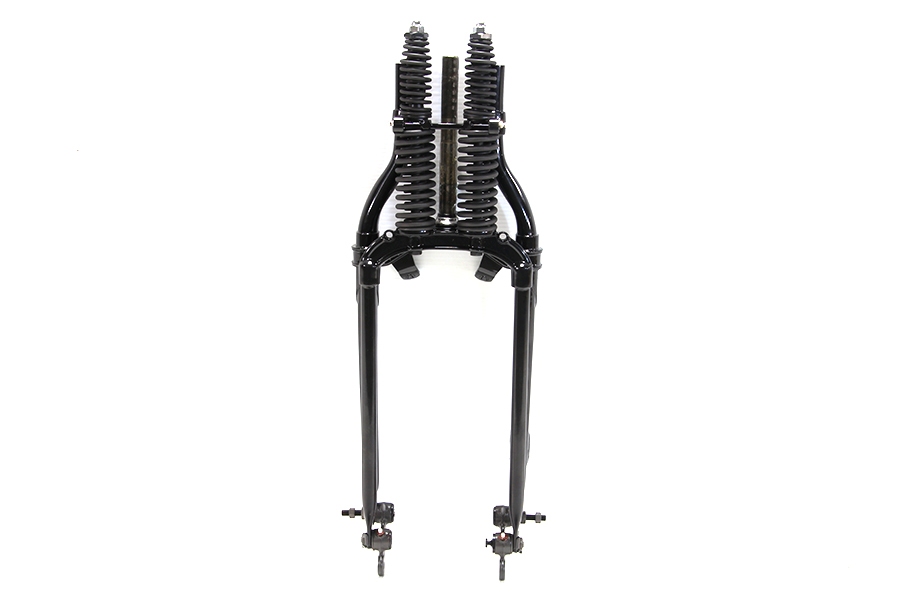

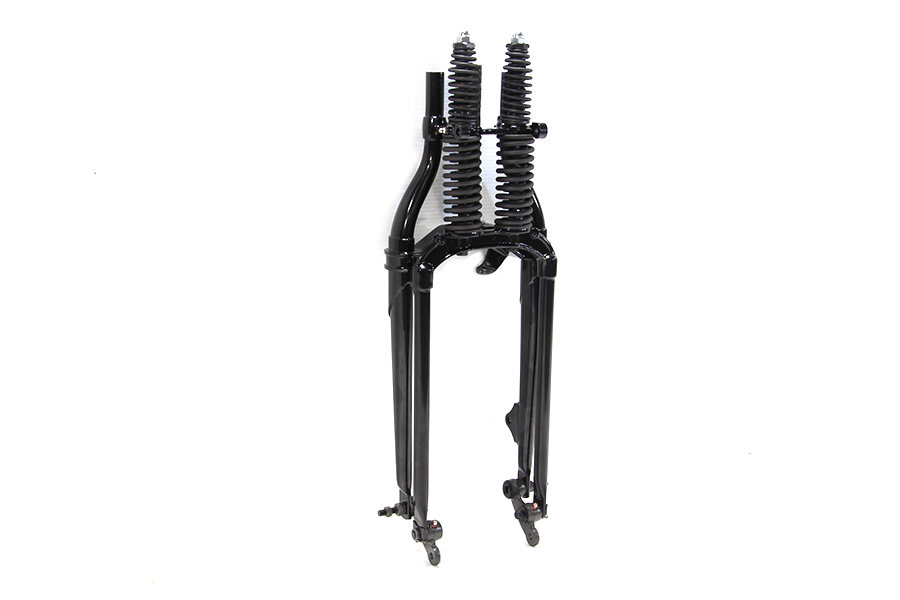

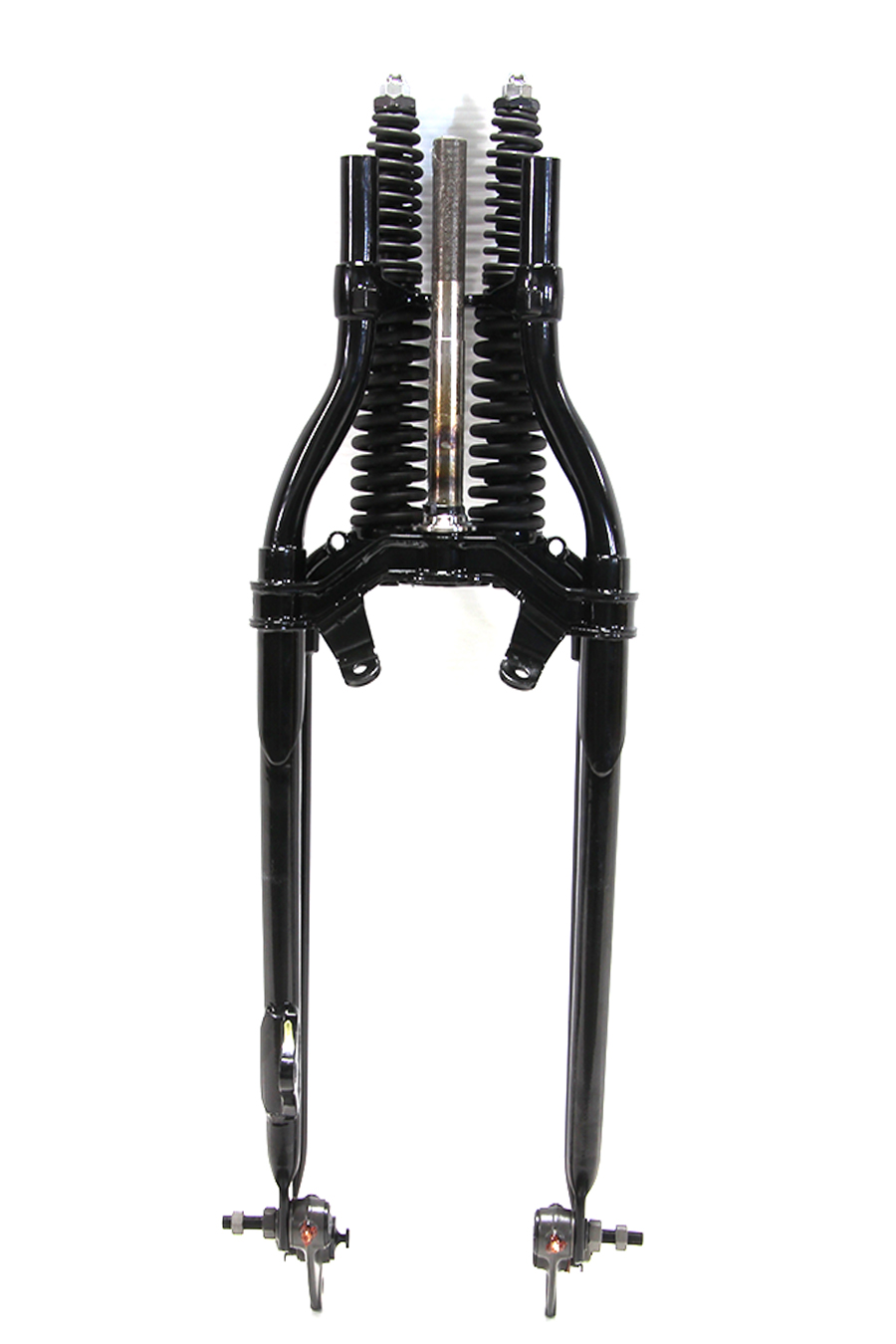

18" Inline Spring Fork Assembly Black
by V-Twin
$1,859.60
V-Twin list $1,549.67 · our price includes online ordering & support
Checkout is not open yet — add parts to build your list.
How shipping will work
Before you order — V-Twin tech note
- Suggested to use with #49-1963 WL Front Axle Black.
- *NOTE: 45" Spring Fork rockers are mounted to the inside of the fork and utilize a 3/8" axle. 45" Servi-Cars, 1947-1957,use Big Twin rockers on the outside of the fork.
- How we measure Spring Forks. NOTE: Measurement is from the triple tree where stem and lower bearing sits, to the axle position. This is the effective length, as it is the legnth
- from the lower bearing cup on the frame to axle. Installer can slide a pipe or solid bar thru the bearing cups and measure the length that may be needed for the desired frame
- height. This Spring Fork assembly accepts a 3/4" axle for custom applications. As rockers are not offset (as on replica Spring Forks). 1" stem utilized tapered bearings for
- ease of installation.
Classic Pre-1984
🏍️ Add your bike to My Garage and we'll tell you instantly whether this fits. Listed for 1 model.
Description
Stock replica Spring Fork assembly accepts all original style components and accessories for a detailed restoration look. The 45 rockers are mounted in board of the fork legs and accepts a 3/8" diameter axle.
Specifications
- V-Twin number
- 49-2400
- Manufacturer
- V-Twin
- Sold as
- 1 - EA
- Origin
- Imported
- Measurements
- Neck Stem Size: 7/8"
- 2026 catalogue pages
- 795
Goes with this part
V-Twin lists these alongside 49-2400 — replacements, the parts commonly fitted at the same time, and supersessions. Check the fitment on each before ordering.
Fits these motorcycles (1)
WL1936-1952
