Oil Change Guide: 2022 Harley-Davidson Forty-Eight XL1200X

Harley-Davidson Forty-Eight XL1200X · 2022 · Oil Changes

Oil Change Guide: 2022 Harley-Davidson Forty-Eight XL1200X

Quick Reference Table

Spec	Value	Source
Engine	Evolution 1200cc (1,202cc, air-cooled 45-degree V-twin)	Harley-Davidson
Frame Platform	Sportster (tube steel frame, rubber-mounted engine)	Harley-Davidson
Oil Type	SAE 20W-50 (Harley-Davidson Formula+ or equivalent API SG+)	H-D Service Manual
Oil Capacity (with filter)	Approximately 3.0 quarts (96 oz)	H-D Service Manual
Oil Capacity (no filter)	Approximately 2.5 quarts (80 oz)	H-D Service Manual
OEM Oil Filter	Harley-Davidson 63731-99A	H-D Parts Catalog
Aftermarket Filter Alternatives	K&N KN-170, WIX 57089XP, HiFloFiltro HF204	Cross-reference
Drain Plug Socket	3/8 inch hex (10mm Allen)	H-D Service Manual
Drain Plug Torque	14-18 ft-lbs	H-D Service Manual
Drain Plug Washer	Copper or aluminum crush washer, replace every change	H-D Service Manual
Oil Filter Install	Spin-on threaded type, hand-tighten plus 3/4 turn after gasket contact	H-D Service Manual
Service Interval	5,000 miles	H-D Sportster Owner Manual

Difficulty and Time Estimate

Difficulty Level: Beginner (1 out of 5)
Estimated Time: 30-45 minutes (first-timer: 45-60 min)
Best Done: On a warm engine, bike upright and level

Complete Tool List

Tool	Size/Type	Purpose
Allen/hex wrench	3/8 inch (10mm)	Remove drain plug
Torque wrench	10-25 ft-lb range, 3/8 inch drive	Torque drain plug
Ratchet	3/8 inch drive	General use
Oil filter wrench	Spin-on can filter wrench or strap-type	Remove old filter
Oil drain pan	Minimum 4-quart capacity	Catch used oil
Funnel	Standard narrow-spout	Add new oil
New oil filter	OEM 63731-99A or equivalent	Replace old filter
Drain plug washer	Copper or aluminum crush washer (new)	Seal drain plug
Clean rags/shop towels	Several	Cleanup
Ground cover	Cardboard or mat	Protect floor

Step-by-Step Instructions

Step 1: Warm the Engine

Start the Forty-Eight and let it idle for 5-10 minutes. The air-cooled Evolution 1200 engine warms up quickly. Warm oil drains more completely. Park on a level surface and shut off the engine.

Step 2: Position the Bike Upright

The Forty-Eight has a very low seat height (26.0 inches) and a peanut tank with a narrow stance. Keep the bike upright and level — do NOT perform an oil change on the side stand. Use a rear stand or have a helper hold the bike vertical.

Step 3: Remove the Oil Fill Cap

Locate the oil fill port on the left side of the Sportster oil tank (mounted under the seat area). Remove the fill cap to allow air into the oiling system for complete drainage. On the Forty-Eight, access is typically clear but may require removing the seat.

Step 4: Position the Drain Pan

Place a minimum 4-quart oil drain pan beneath the drain plug on the bottom of the Evolution engine crankcase.

Step 5: Remove the Drain Plug

Using a 3/8 inch hex wrench, loosen the drain plug counterclockwise. Remove the final turns by hand — be ready for oil flow.

Warning: Oil may be warm. Wear gloves and eye protection.

Step 6: Drain the Oil Completely

Allow all oil to drain — approximately 10-15 minutes. Inspect the drain plug and oil for unusual debris. The Evolution 1200 is a durable, proven engine — fine particles are normal, but excessive metallic debris requires dealer attention.

Step 7: Replace the Drain Plug Washer

Remove the old crush washer and replace with a new copper or aluminum washer. Do NOT reuse — these are single-use sealing components.

Step 8: Reinstall the Drain Plug

Clean the drain plug threads and seating area. Install with the new washer, hand-tighten, then torque to 14-18 ft-lbs.

Do NOT over-torque. The Evolution crankcase has aluminum threads. Stripping them is an expensive repair.

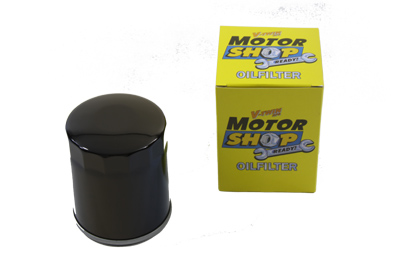

Step 9: Remove the Old Oil Filter

The Forty-Eight oil filter is a spin-on can located on the right side of the Evolution engine, near the bottom. Position catch rags below. Use a spin-on filter wrench to loosen, then unscrew by hand. Check that the old rubber gasket came off with the filter.

Step 10: Prepare the New Filter

Before installing: 1. Apply a thin film of clean 20W-50 motorcycle oil to the rubber gasket on the new filter 2. Inspect the engine mounting surface — confirm the old gasket was fully removed 3. Do NOT pre-fill — the filter is angled and will spill during installation

Step 11: Install the New Oil Filter

Thread the new filter on by hand. When the gasket contacts the seat, tighten an additional 3/4 turn by hand.

Hand-tighten only. No wrench for installation.

Step 12: Add New Oil

Using a funnel, pour approximately 2.5 quarts of SAE 20W-50 motorcycle oil into the fill port. Use H-D Formula+ or equivalent API SG+ rated oil with JASO MA/MA2 certification.

Note: The Evolution 1200 uses 20W-50 — the same as Milwaukee-Eight models. This is different from Revolution Max engines which use 10W-40.

Step 13: Verify the Oil Level

Rest the fill cap on the oil tank without tightening
Start the engine and idle for 2-3 minutes
Shut off and wait 1-2 minutes for oil to settle
Check the dipstick — oil should be between the Add and Full marks
Add oil in small amounts if needed, rechecking between additions
Tighten the fill cap securely when the level is correct

Step 14: Final Checks

Inspect for leaks at the drain plug and oil filter
Wipe any spilled oil from the engine, frame, or peanut fuel tank
Dispose of used oil and filter properly (see below)
Record this service in your Forty-Eight maintenance log

Tips, Warnings and Common Mistakes

Helpful Tips

Evolution engine reliability: The 1200 Evolution is one of the most proven Sportster engines ever built. Proper maintenance keeps them running for well over 100,000 miles.
Oil recommendation: H-D Formula+ semi-synthetic is excellent for the Evolution 1200. Mobil 1 V-Twin 20W-50 and Amsoil V-Twin Synthetic are great alternatives.
Peanut tank styling: The Forty-Eight signature peanut tank makes this bike unmistakable. Take care not to drip oil on the fuel tank finish during the oil change.
Keep records: Sportster maintenance documentation is important for resale value.

Warnings

NEVER use automotive oils with friction modifiers — the Sportster uses a wet clutch and will slip with car oils.
Do NOT over-torque the drain plug — the aluminum Evolution crankcase is damaged easily by overtightening.

Common Mistakes to Avoid

Mistake	Consequence	How to Avoid
Using car oil	Clutch slippage	JASO MA/MA2 required
Over-torquing drain plug	Stripped crankcase threads	14-18 ft-lbs with torque wrench
Reusing drain washer	Oil leak	Replace every change
Not checking oil level after fill	Running with low oil	Start engine, wait, recheck
Double-gasketing the filter	Major oil leak	Verify old gasket removed
Performing on side stand	Inaccurate oil level	Bike must be upright and level

Oil Disposal

Never pour used motor oil down a drain, into trash, or on the ground.

Pour into a clean sealed container
Drop off at AutoZone, O'Reilly, Advance Auto Parts, or NAPA (all free)
Include the old oil filter
Municipal recycling and hazardous waste facilities also accept
Never mix with other fluids

Verification Notes for 2022 Model Year

Note: The Forty-Eight XL1200X was discontinued in many markets after 2022. Verify these specs against your specific owner's manual:

Spec	Known Value	Notes
Oil capacity	~3.0 qts (with filter)	Evolution 1200 Sportster spec
Oil type	SAE 20W-50	Standard for air-cooled Evolution engines
Drain plug tool	3/8 inch hex (10mm Allen)	Standard Sportster
Drain plug torque	14-18 ft-lbs	Aluminum crankcase — do not exceed
Oil filter	63731-99A / KN-170 / HF204	Same as most Harley models
Oil fill location	Left side oil tank (under seat area)	Sportster separate oil tank
Service interval	5,000 miles	Evolution engine schedule
Note	Discontinued in most markets after 2022	Replaced by Sportster S/Nightster

To verify: Consult your Sportster Forty-Eight owner's manual or an authorized H-D dealer. The Evolution 1200 engine was used across Sportster models for decades with consistent oil specifications.

Guide prepared based on Harley-Davidson Evolution 1200 Sportster service manual specifications and OEM recommendations. Always verify against your specific owner's manual before performing maintenance.
